SIS1100(e/e2)/310x(-e/e2) Windows driver API manual page

The original SIS1100/SIS3100 PCI to VME interface was a joined development of the ZEL department of the research center Juelich and Struck Innovative Systeme.

The Windows driver/API (and the LINUX driver) is available for download from the Struck Dokuwiki for registered users.

The SIS1100(e/e2)/310x(-e/e2) NT/Win2K/Windows XP/Win7/Win10/Win11 driver uses the PLX API libraries

Copyright © 2001-2011 PLX Technology, Inc.

PLX Technology,Inc. was acquired by Broadcom Inc. in 2014 and the PEX8311 PCI Express to local bus bridge chip was discontinued end of 2021. Limited volume of the chip is still available on the grey market.

vertical bar

Files:

  • SIS1100(e)/310x(-e/e2) Windows driver/API (as download from Struck Dokuwiki)
  • SIS1100/3100 Labview interface manual
  • SIS1100/3100 KMAX driver manual
    • vertical bar

    An executable program with graphical user interface (SIS310x Base GUI) on the base of National Instruments CVI is provided with the SIS1100(e/e2)/310x(-e/e2) to execute VME cycles or to control both the SIS1100(e/e2) and SIS310x cards without the need to program. Read and Write cycles are controlled via the Global Write and Global Read Access Mode pulldowns separately.

    SIS3100Base GUI

    SIS3100 win gui

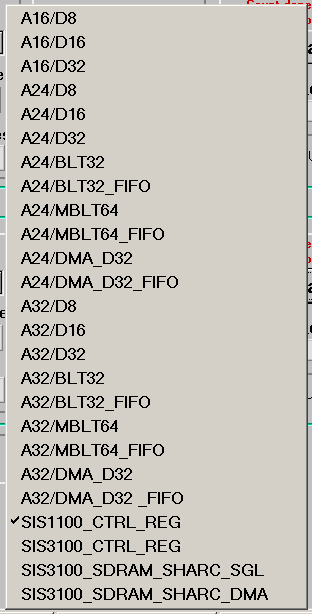

    Access Mode pulldown for Global Write

    access mode pulldown

    Access Mode pulldown for Global Read

    Please note, that 2e VME is supported on read (from the SIS3300 and SIS3301 digitizers e.g.)

    SIS3100 read pulldown

    SIS1100/3100 Labview Interface (example single read)

    single read vi

    SIS1100/3100 KMAX Interface (SIS3300 FADC readout)

    KMAX screen shot
