SIS3315 16 Channel 15 MSPS 18-bit VME Digitizer

The SIS3315 is a midspeed digitizer with superior linearity (see below).

It is based on Analog Devices ADAQ23878 μModule ADC solution.

The digital part of the SIS3315 design was adopted from the faster SIS3316-2 family.

The readout of Quantum Sensors/Magnetic Micro Calorimeters (MMC) is the initial target application.

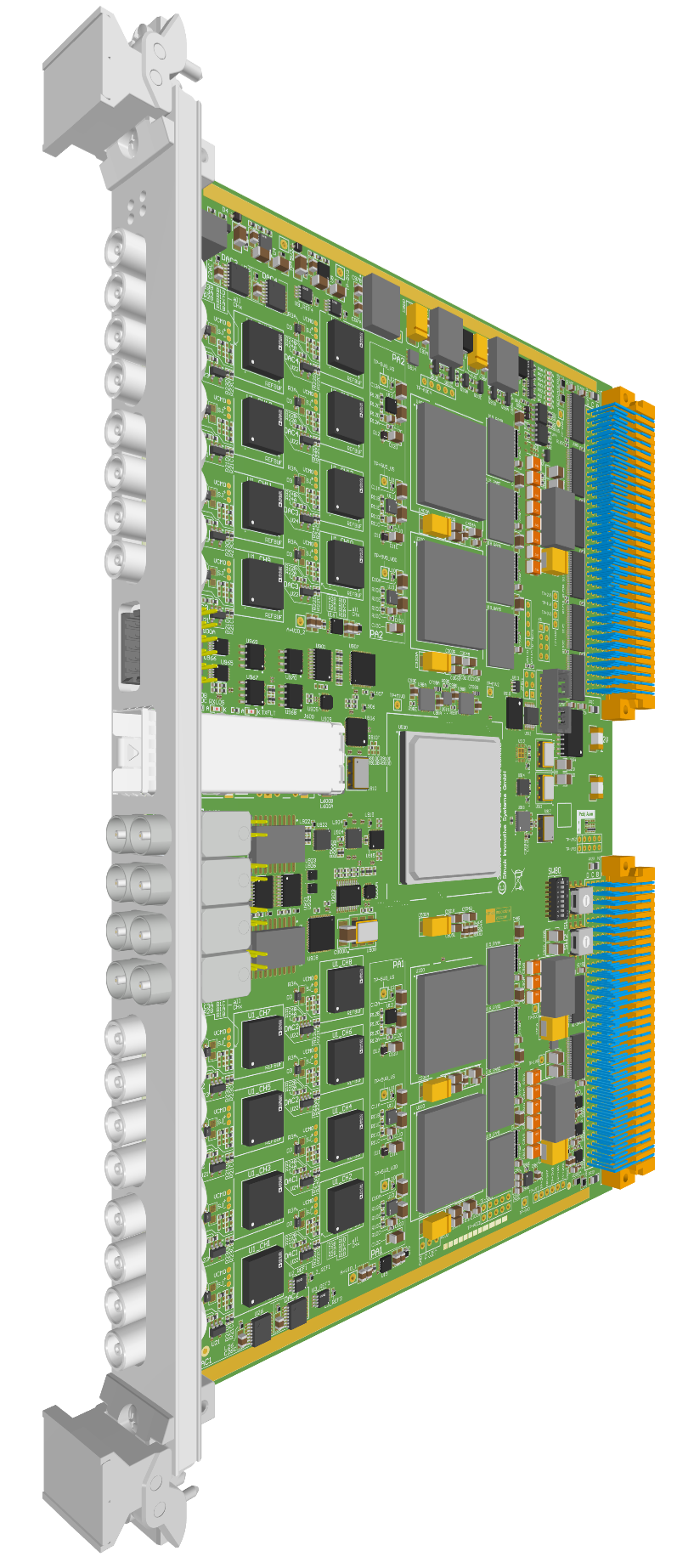

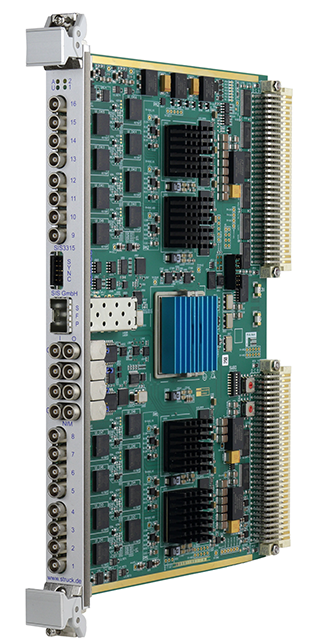

Photograph

Features/Properties: Single width 6U VME card AMD Xilinx Artix-7 FPGA based 16 channels 15 MS/s per channel 18-bit resolution 64 MSamples memory/channel 5 V default input range Other input ranges as solder option 50 Ω or high impedance (default) solder configurable Offset DACs > 20 MHz analog bandwidth (see below) Internal/External clock Multi event mode Readout in parallel to acquisition Pre/Post trigger capability Trigger OR output (16 individual thresholds) SFP cage (Gigabit Ethernet or Multi-Gigabit optical link connection) A32/D32/BLT32/MBLT64/2eVME 1-wire Id. serial PROM In field JTAG and JTAG over VME firmware upgrade capability

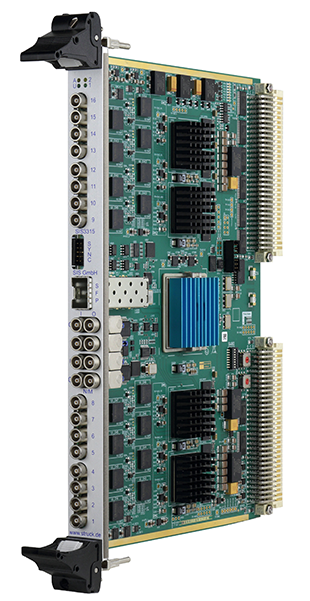

Under this link you will find a picture of the SIS3315 with VME64x lever handles

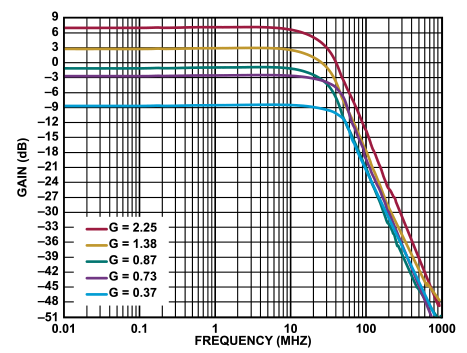

Analog Bandwidth for different gain settings

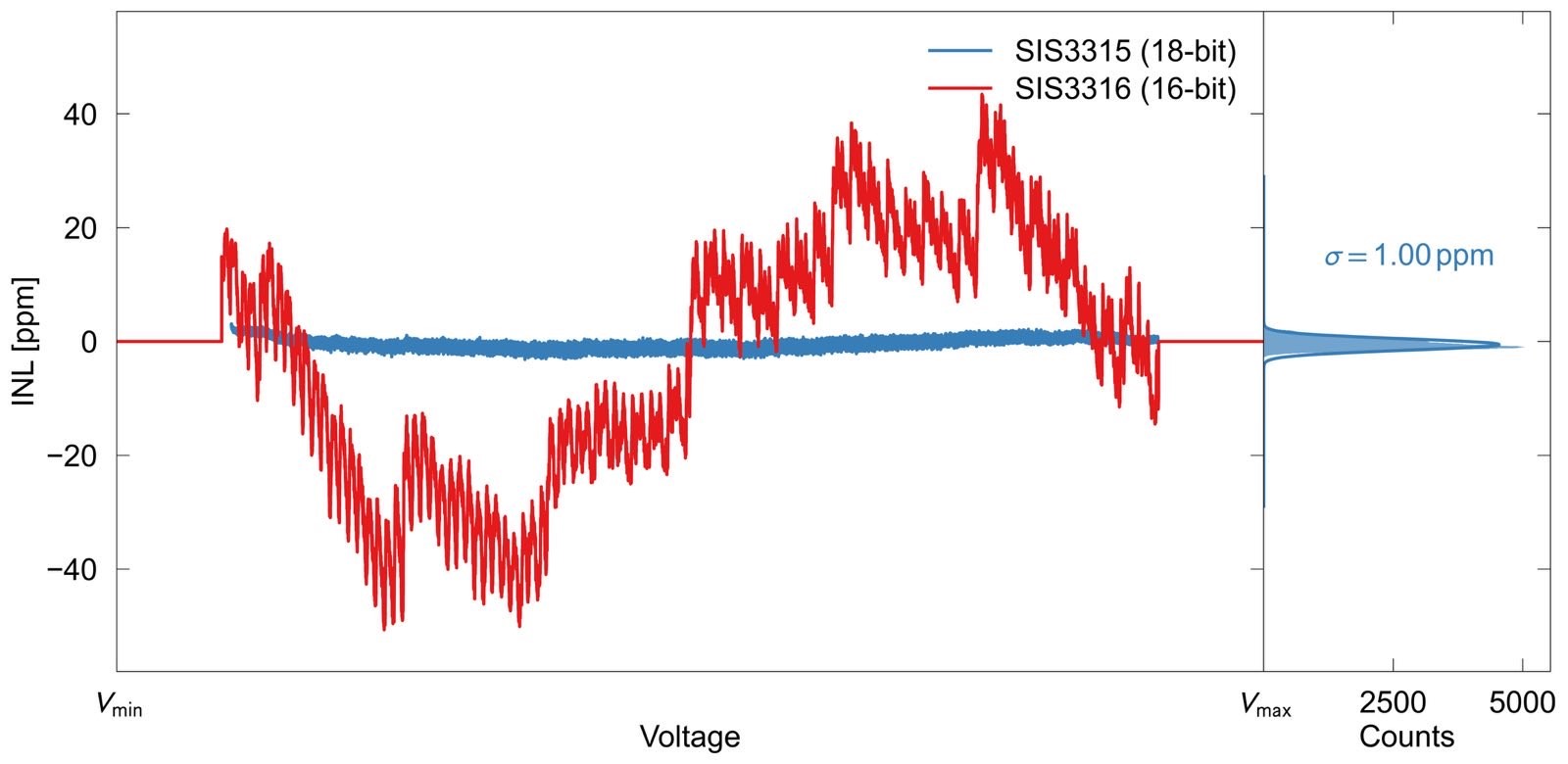

INL comparison of SIS3315 with SIS3316

The first INL comparison in between of a SIS3316 125 MSPS 16-bit and the new SIS3315 15 MSPS 18-bit digitizer can be found below. The diagram is courtesy of the Kirchhoff Institute for Physics of the University of Heidelberg.
