SIS3100 VME sequencer


The SIS3100 was developed as the VME side of our PCI to VME interface. The module is however perfectly suited for other custom applications like a histogramming multiscaler for LIDAR or a generic DSP controlled VME histogrammer . Up to four SIS3100 can work as a data reduction farm, data can be either read out actively over VME through the master port or passively pushed into the module through the VME slave port.

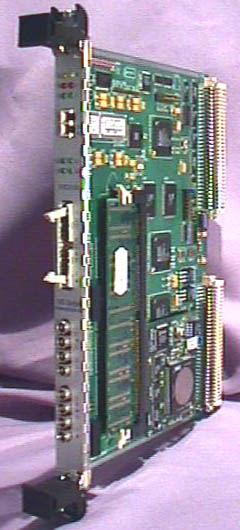

Picture of SIS3100 with DSP, SDRAM and front panel I/O option

SIS3100 photograph

Properties of VME side:

(Base configuration)

red ball

VME sequencer

red ball

Mapping table with 128 entries

red ball

VME master A16/A24/A32/A40 D8/D16/D32/BLT32/MBLT64/2eVME

red ball

VME slave A32/D32/BLT32/MBLT64

red ball

Block transfer address auto increment on/off (for FIFO reads)

red ball

System controller function (can be disabled by jumper)

red ball

up to 450 m link distance (up to 20 km with long distance option)

red ball

EMC front panel

red ball

LED's

A (access/slave) M (master)
P (power) S (sequencer)
R (ready) L (link up)
LU (link data up) LD (link data down)
U (user) DU (dsp user)

Options:

red ball

SIS9200 DSP piggy pack as histogrammer

red ball

64/128/256/1024 MB slave/histogramming memory

Front panel I/O option

red ball

4 flat cable inputs/4 flat cable outputs (ECL or high impedance TTL)

red ball

3 LEMO inputs/3 LEMO outputs (50 Ohm TTL or NIM level)

red ball

LEMO reset input (50 Ohm TTL or NIM level)

red ball

LEMO reset output (50 Ohm TTL or NIM level)

Long distance option

red ball

Monomode link medium (up to 5, 10 or 20 km link distance)

red ball

Deep transfer FIFOs


Block diagram of VME side:


Dedicated firmware version(s):

red ball

SIS3100-HISCAL 2 channel histogramming scaler


Last update 15.02.02 by Matthias Kirsch
