SIS5802 8 Channel 16-bit prescaler


The SIS5802 8 channel CAMAC prescaler/rate divider was designed with the requirements of programmable trigger prescaling applications in mind. The flexible input output options will help to save logic level converters and the related cabling in many cases.


Features:

red ball

8 channels

red ball

16-bit predivider

red ball

100 MHz input rate

red ball

NIM/LEMO hardware inhibit

red ball

Software Inhibit

red ball

OR ECL output

red ball

NIM/LEMO or ECL inputs jumper selectable

red ball

2 NIM/LEMO and 1 ECL flat cable outputs per channel

red ball

CAMAC Access (N) LED

red ball

Inhibit LED (OR of soft- and hardware inhibit)

red ball

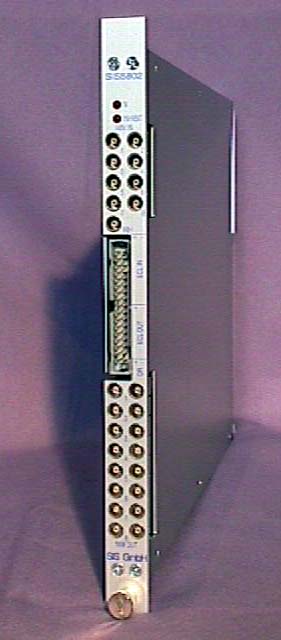

Photograph:

SIS5802 photograph

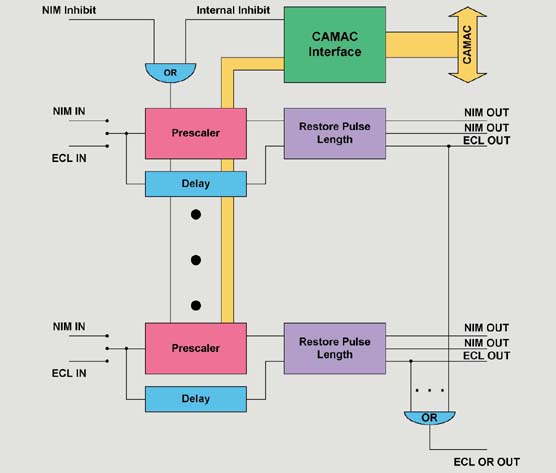

Block diagram:

SIS5802 block diagram

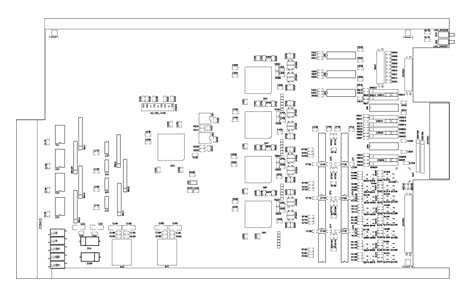

Board layout and front panel:

(the two cutouts are occupied by the LEMO connector PCB)

SIS5802 board layout
