SIS3801 32 Channel 32-bit 200 MHz multi channel Scaler/Counter

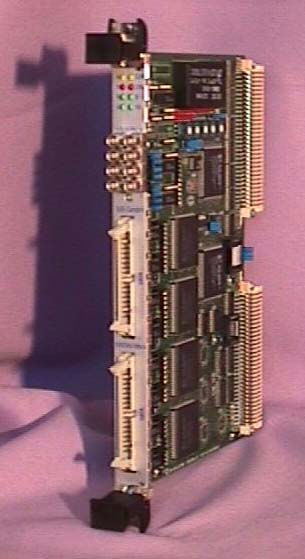

The SIS3801 is one of the multiscaler implementations on the base of the SIS38xx/360x base board. It combines high packing density with a fast counting rate and an adapted channel depth. Deadtimeless readout can be implemented by making use of the units two counter banks. The multiscaler is designed for experiments with the need to measure counting rates with fixed or variable time intervals. The counter data are stored in a synchronous FIFO, thus readout can take place in parallel to the acquisition of new data. The scaler is a single width 6U VME card, no non standard voltages are required. The unit comes with a 20 pin header connector for the control section and two 34 pin headers for the counters (ECL and flat cable TTL version) or via 8 LEMO connectors for the control section and 32 LEMOs for the counter section (NIM and LEMO TTL version). RS422/RS485 is available as input option. Photograph of the flat cable/LEMO version.

Mixed LEMO control/flat cable counter input version available (looks like SIS3800 mixed Version).


Features/Properties:

red ball

32 channels

red ball

Minimum dwell time 400ns-4µs (1-32 active channels)

red ball

24/32-bit channel depth

red ball

External/VME time slice advance

red ball

200 MHz

red ball

VME interrupt capabilities

red ball

2 scaler banks

red ball

VME64x side shielding

red ball

64/256 (optional) K FIFO size

red ball

A16/A24/A32 D16/D32/BLT32

red ball

VME access/user LED

red ball

VME64x connectors

red ball

2 front panel user bits (in 24-bit mode)

red ball

Broadcast features

red ball

copy in progress ouput

red ball

Single +5 V supply


Special Properties of Firmware Designs 5 and 6

red ballPrescaler for external next pulse
red ballInternal pulser for next pulse
red ballBroadcast features not available

Special Properties of Firmware Designs 7 and 8

The firmware designs 7 and 8 are based upon the designs 5 and 6, the additional feature which was introduced is the possibility to inhibit the next pulse via an external front panel signal. This allows the user to save an external coincidence module which was needed for the implementation of this functionality so far.


EPICS logo

EPICS support by Mark Rivers http://cars9.uchicago.edu/software/dev_mca_struck.html.
