System setup
100 mm x 100 mm inspection area
5 µm minimum pinhole size
Laser light source
30s scan time
Graphical user interface
System setup
19" rack with scanning system
PC for operator control and visualization

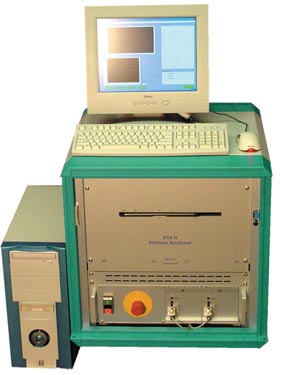

The PIA II pinhole analyzer is a system that was developed to measure and classify pin hole density on aluminum samples. It extends visual operator light table inspection to an objective measurement with pinhole size distribution and is used for statistical product quality monitoring in rolling mills and converter plants.
|
System setup
100 mm x 100 mm inspection area
5 µm minimum pinhole size
Laser light source
30s scan time
Graphical user interface System setup
19" rack with scanning system
PC for operator control and visualization |
