SIS2900 D-Mostab (disctontinued product)


The D-Mostab NIM (SIS2900) module was developed at DESY to stabilize the harmonic content or the absolute intensity of the X-Ray beam. DESY offered the license to build the module to SIS and the license agreement was signed beginning of January 2000.

Status: Discontinued product, RoHS transition and/or production of additional units is not possible due to obsolescence of components

The SIS2900 samples and digitises one or two analog signals, signal processing is applied to derive the analog output voltage to control one crystal of a double monochromator via a Piezo.

D-Mostab LCD

Functionality:

red ball

Two analog inputs via LEMO connectors (for I or I/I0 operation)

red ball

Analog Output 0-10V (to control external HV supplies)

red ball

32 KHz sampling rate

red ball

On board DSP (digital signal processor)

red ball

TTL loop locked output and LED

red ball

Control via RS232

red ball

0 ... -1000 V 2 mA HV option (not with rackmount option)

red ball

Front panel control option (communication processor)

Packaging Options:

red ball

Double width NIM Cassette

red ball

2U 19" rack mount chassis

Piezo Controller Option:

red ball

LVPZT controller with DMS/strain gauge mode (in combination with rack mount option)

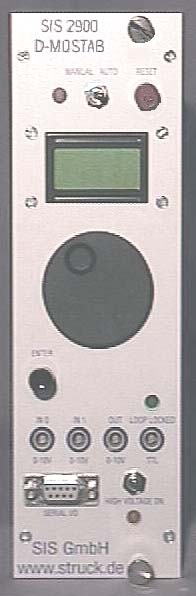

SIS2900 D-Mostab front panel view (NIM version)

D-Mostab front view

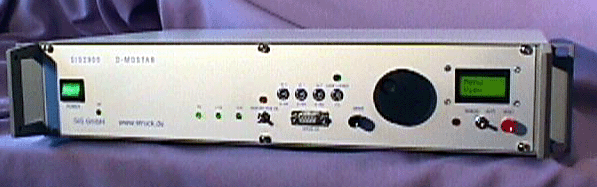

SIS2900 D-Mostab front panel view (rackmount version)

D-Mostab front view

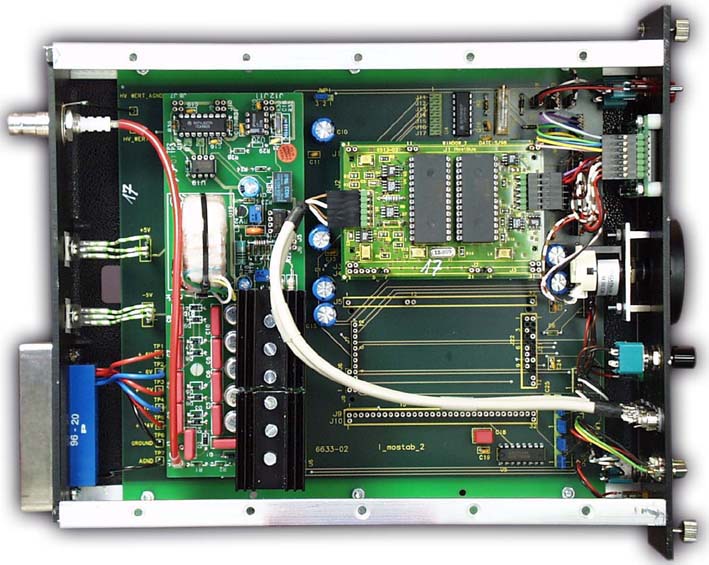

SIS2900 D-Mostab side view

D-Mostab side view

D-Mostab Firmware

Download version 6.1 dmos.hex. Fixes two input mode normalisation accuracy problem. The program can be downloaded to your D-Mostab with the utility promprog (part of the export directory).


Last Update 28.01.07 by Matthias Kirsch
